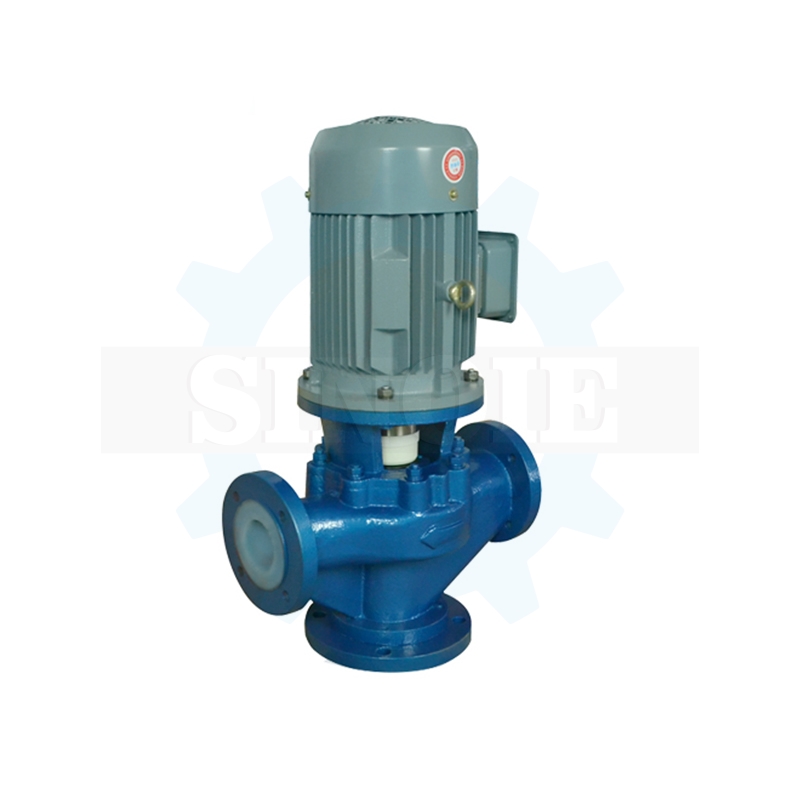

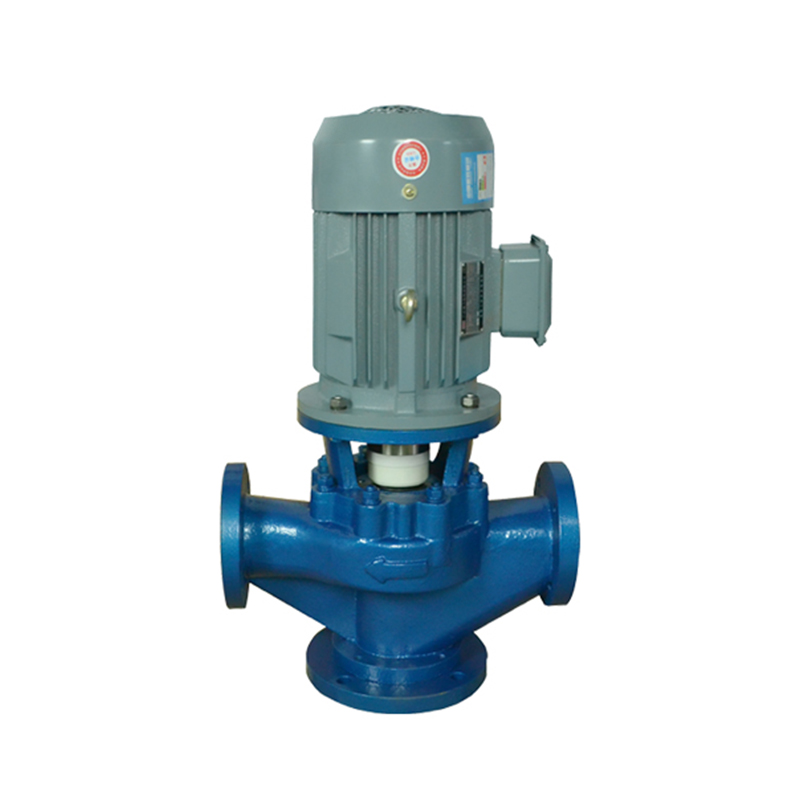

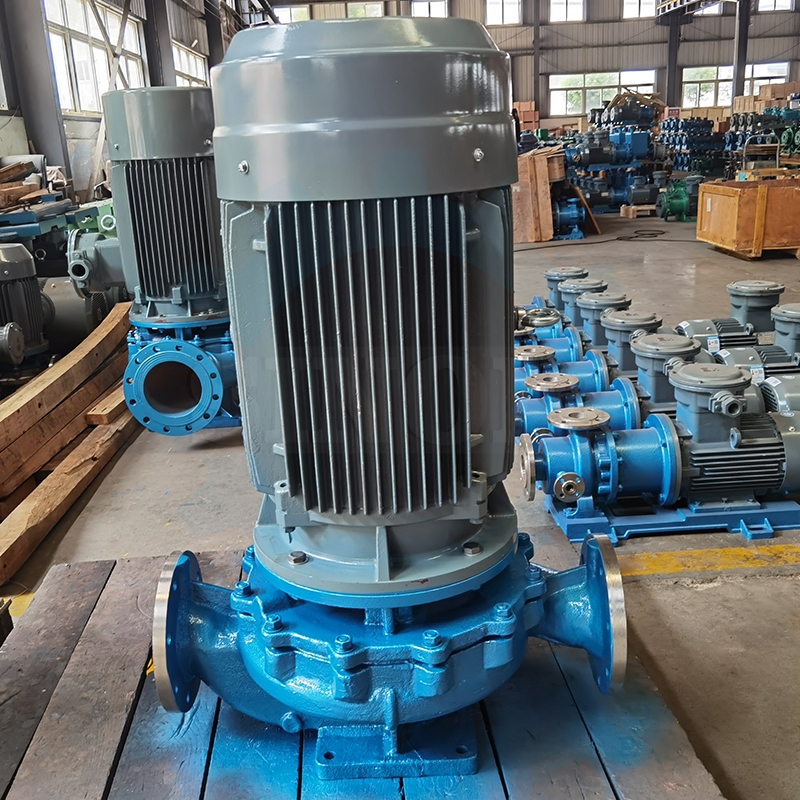

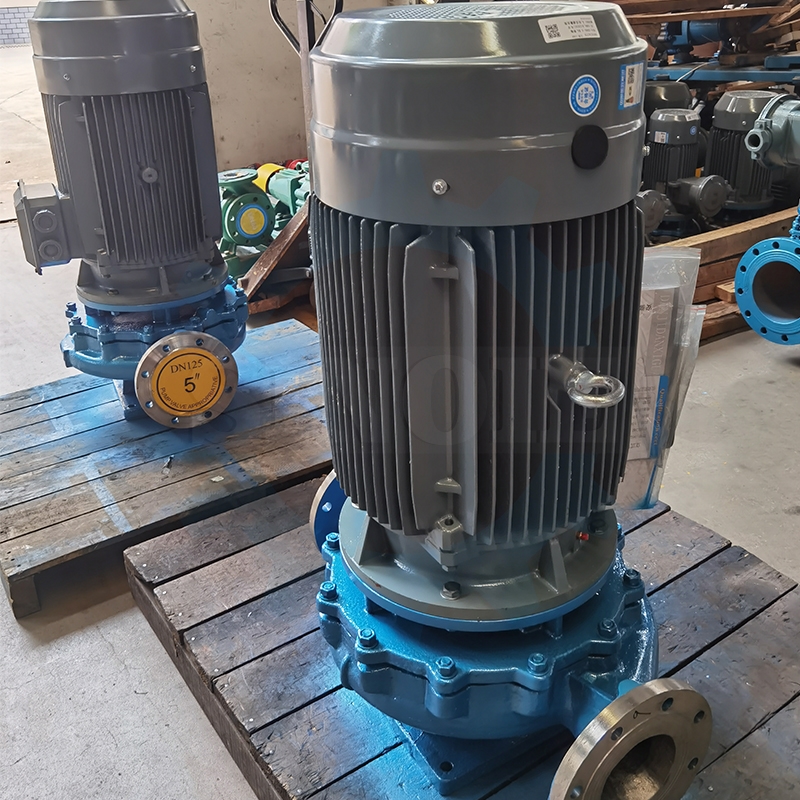

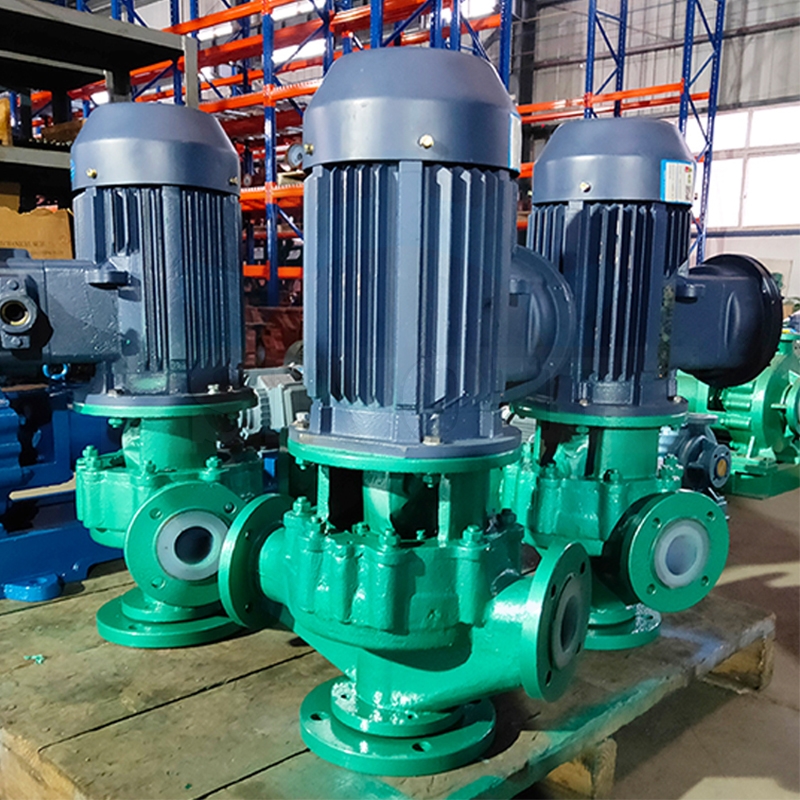

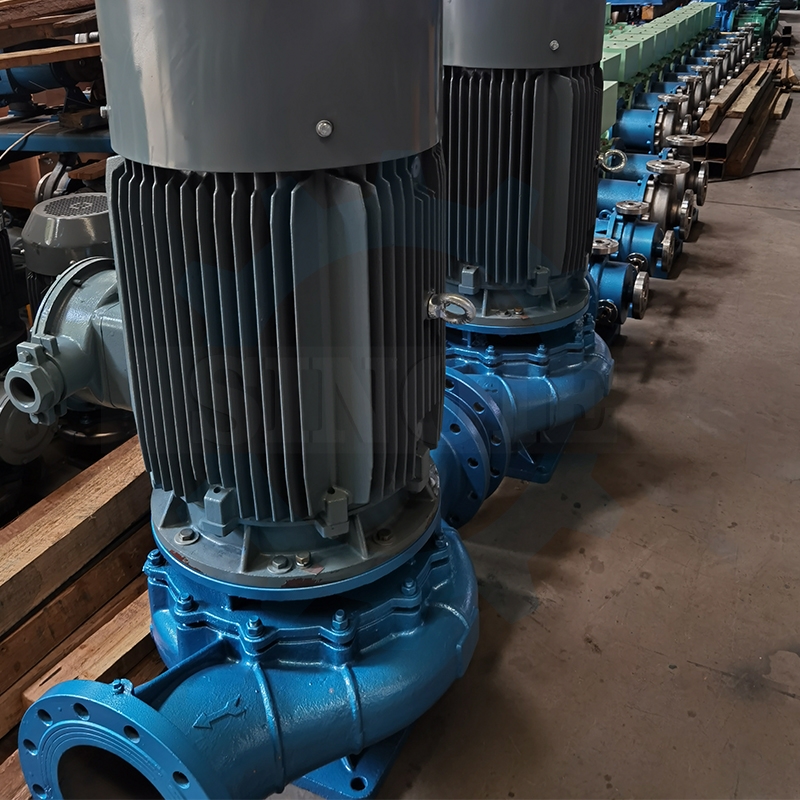

GF Fluorine plastic pipe pump

Power:Electric

Structure:single-stage pump

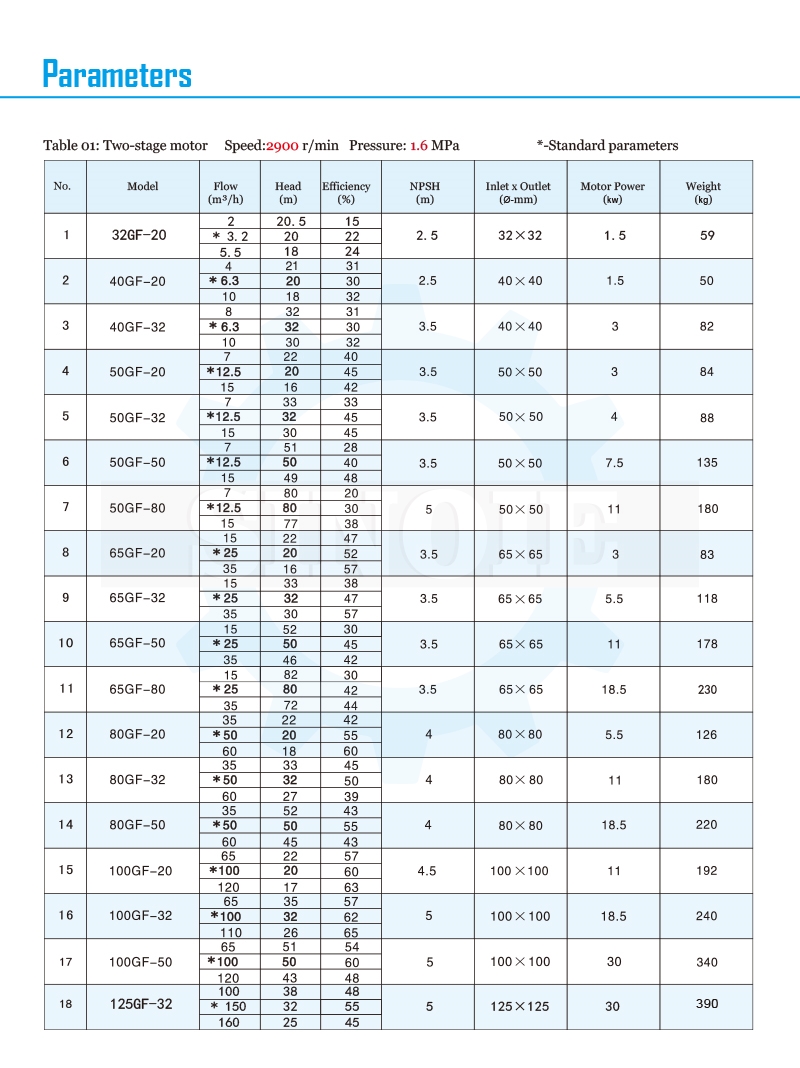

Operating range:

Flow:2-160m³/h

Head:16-80m

Outlet size:32-125mm

Power:1.5-30kw

Range of working temperature:-20~150°C

Color:blue/green/yellow/customized color

Lining plastic:PTFE/FEP/PVDF/PFA

Applicable medium:H2SO4/HCL/HNO3/NaOH/HF/CH3COOH

Product Description

The GF Fluorine interlined pipe pump is widely used in such industries as petroleum,chemicals,metallurgy,electric power,papermaking,flue gas desulfurization,dust collection,food,pharmaceutical and synthetic fiber.

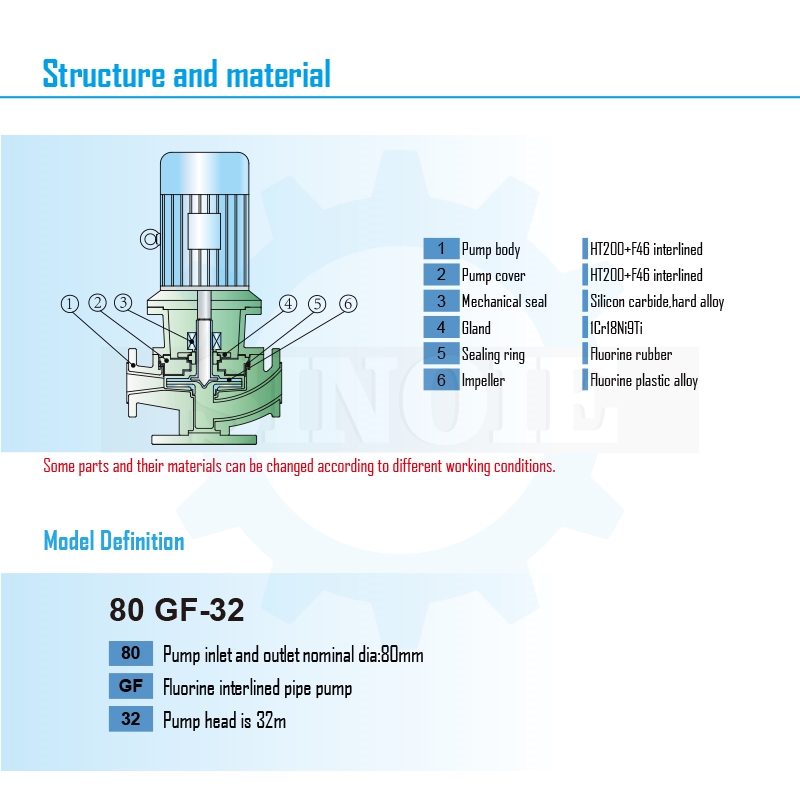

Standardized design

The marking, performance and size of GF fluorine plastic  corrosion resistant centrifugal pump products are all  as standard JB/T6878.1-93, and the manufacturing technical  are as standard JB/T6878.2-93, and the design is based on the advanced standards of similar products in China.

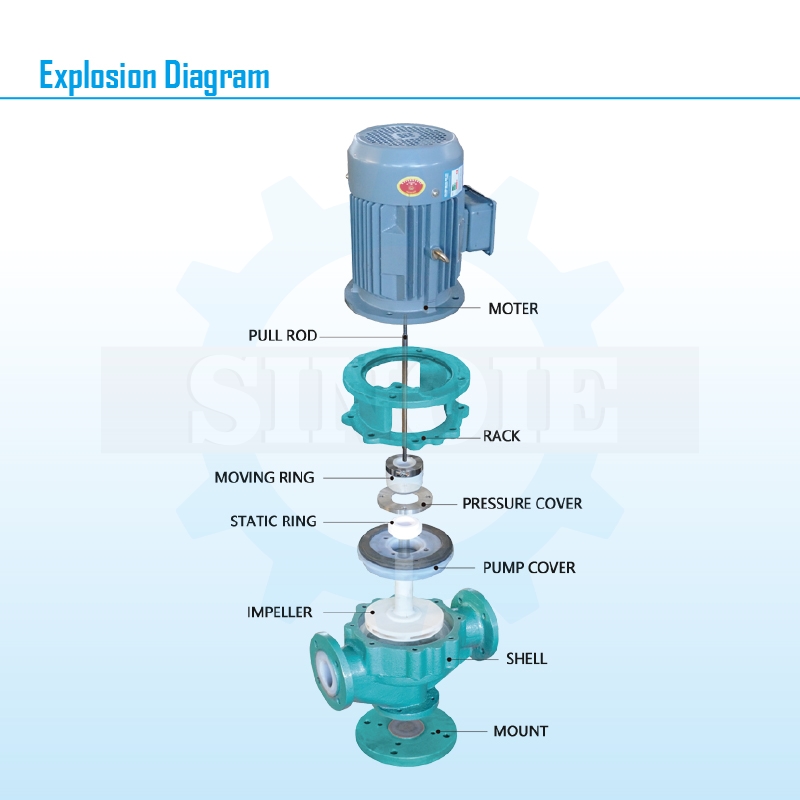

1.The GF Fluorine Interlined Pipe Pump is of vertical structure.The inlet and outlet have the same diameter and on the same center line.

2.The impeller of GF fluorine interlined pipe pump is directly mounted on motor shaft in an optimized manner to ensure effective balance of the radial and axial loads generated by the pump.This ensures the pump runs stably with low vibration and noise.

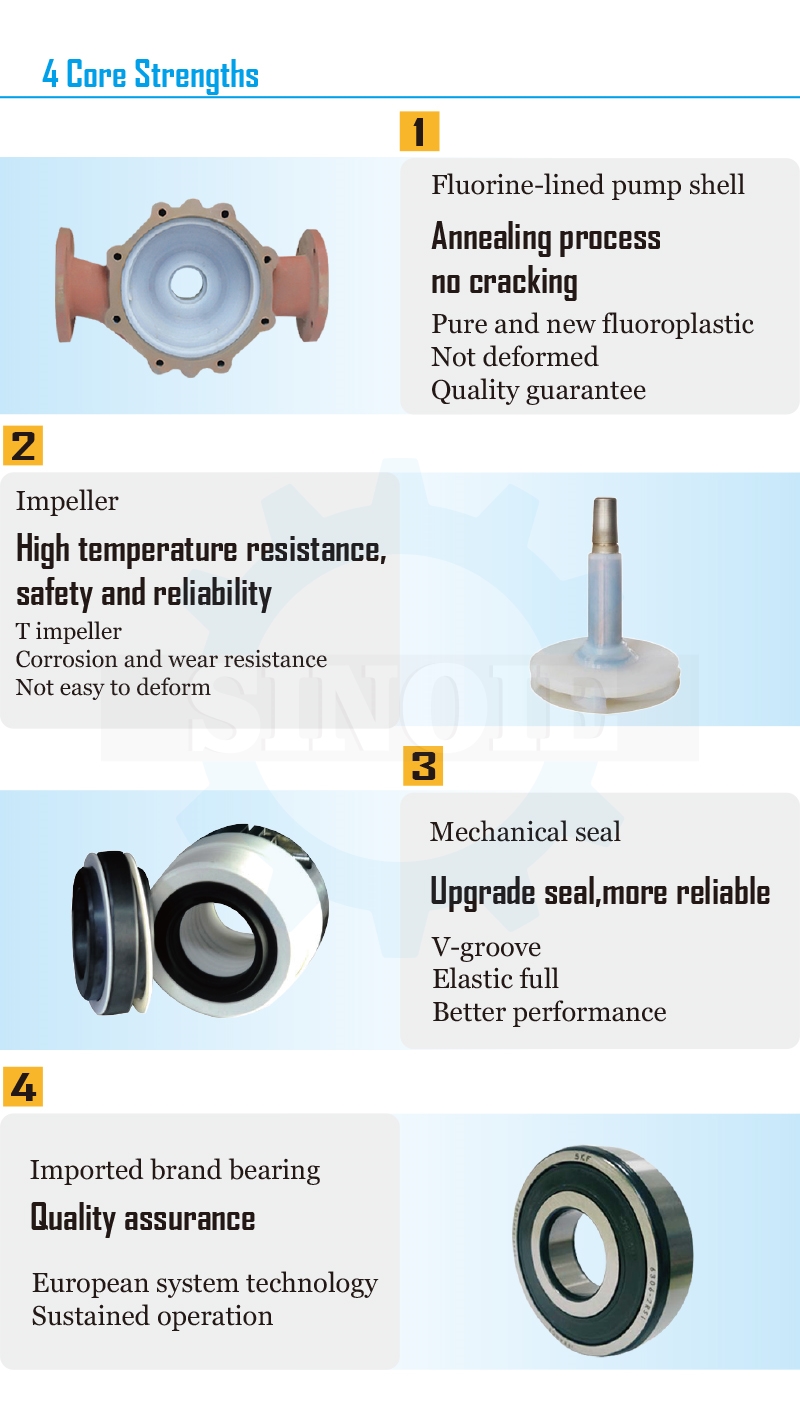

3.The shaft seal is in state of the art bellow mechanical seal which is outside mounted with reliable sealing performance.The static ring is of alumina ceramics and the dynamic ring is of PTFE stuffing(or other materials according to the users special conditions),featuring in superior performance in sealing and good resistance to corrosion and abrasion.Effectively increase the service life of mechanical seals.

4. Simple structure, easy maintenance, small area.No need to disassemble the pipe when replacing the easily-damageable components,like impeller,sealing etc.



Long life mechanical seal.
Shaft seal is outside mechanical seal, which stationary ring material is alumina ceramics, rotating ring made of PTFE, mechanical seal able to bear high corrosive liquid.

Convenient maintenance, simple structure, easy for repair.

When change impeller, mechanical seal spare parts, no need disassembly the piping.

The material is virgin, unfilled lining FEP/PTFE

(1) Considerably easier and more reliable quality control.

(2) No reduction in the permeation resistance.

(3) Pure pharmaceutical and fine chemical media: no contamination

Robust pump casing.

With ductile cast iron armouring absorbs all the hydraulic and pipe work forces to DIN/ISO5199/Europump 1979.In contrast to partially or non-armored plastic pumps, no expansion joints are required. Flange with service-minded through holes to DIN;ANSI,BS;JIS. For flushing system and monitoring device as required, the draining nozzle will be offered(pump housing picture)

Closed impeller with flow-optimized vane channels: for high efficiency and low NPSH values.

The metal core is protected by a thick-walled seamless plastic lining, the large metal core and increase the mechanical strength considerably even at elevated temperature and high flow rates. Impeller connecting with Motor directly, which can balance radial and axial load.

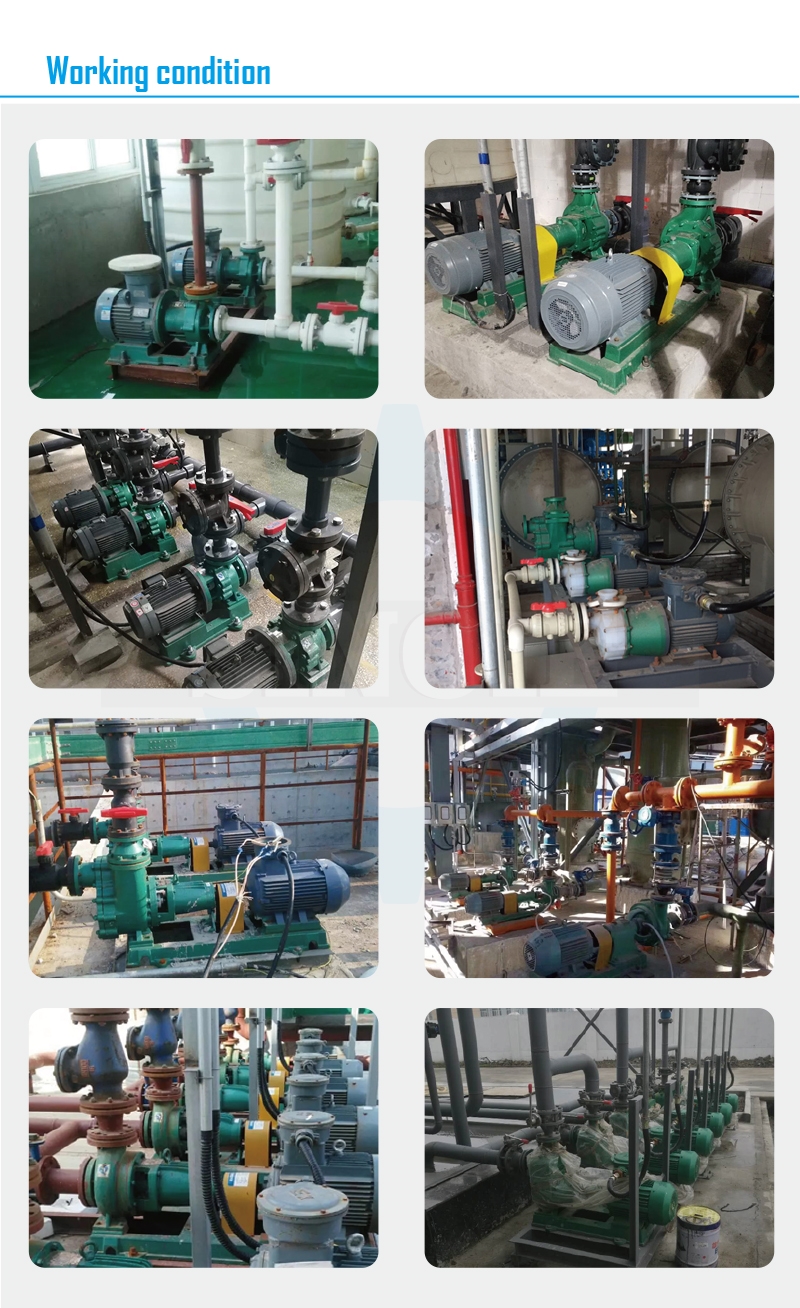

Petrochemical


Chemical

Power station

Pulp paper

Nonferrous smelting process

Food industry

Flue gas desulfurization

Dust removal

Synthetic fiber

Transportable liquids:

Acid and caustic liquid

Oxidizer corrosive liquids

Salt solution


Transportable liquids:

Acid and caustic liquid

Oxidizer corrosive liquids

Salt solution

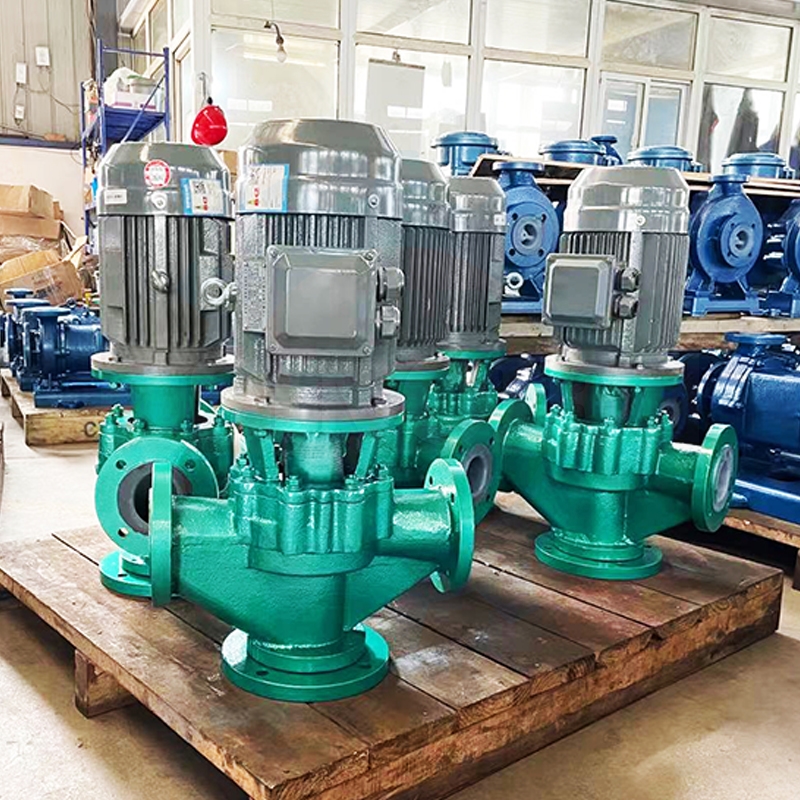

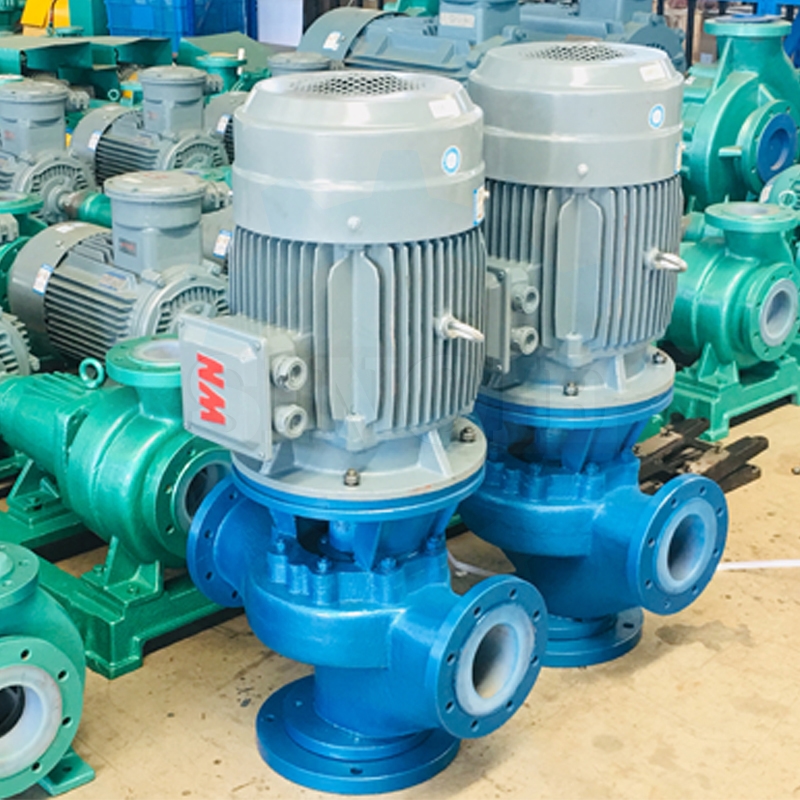

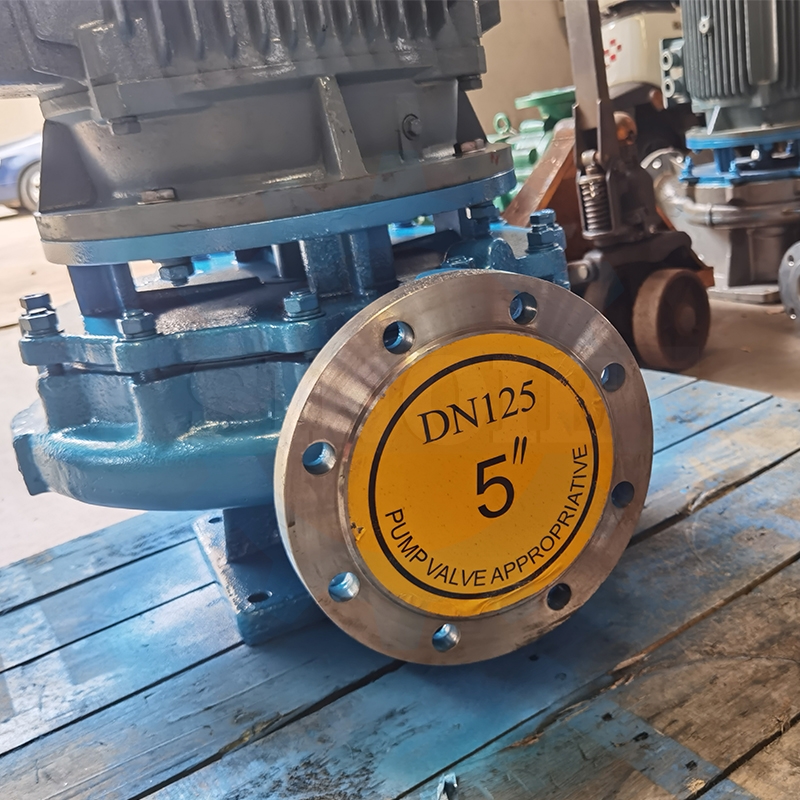

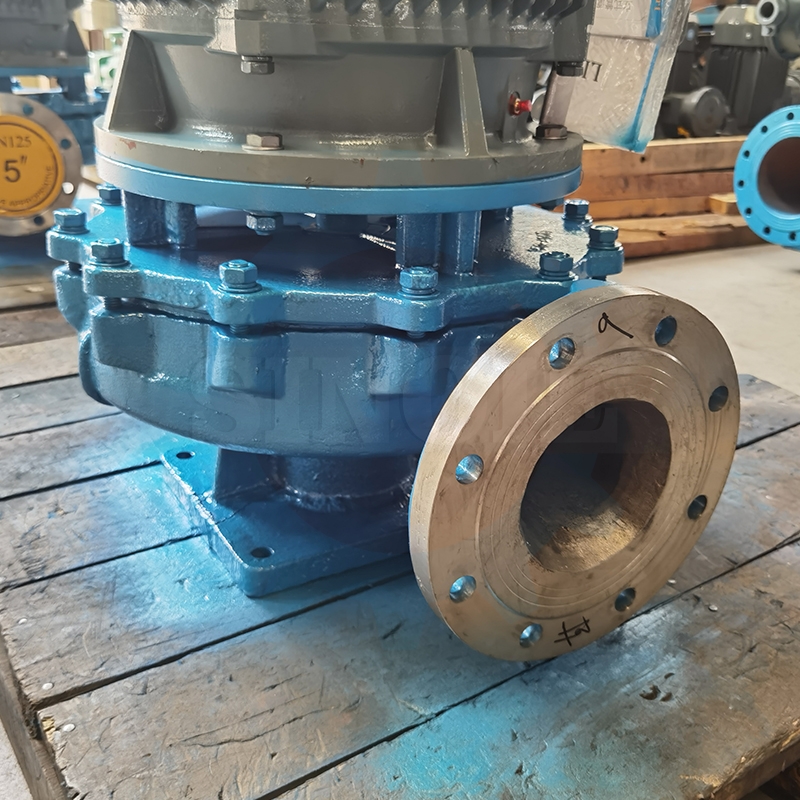

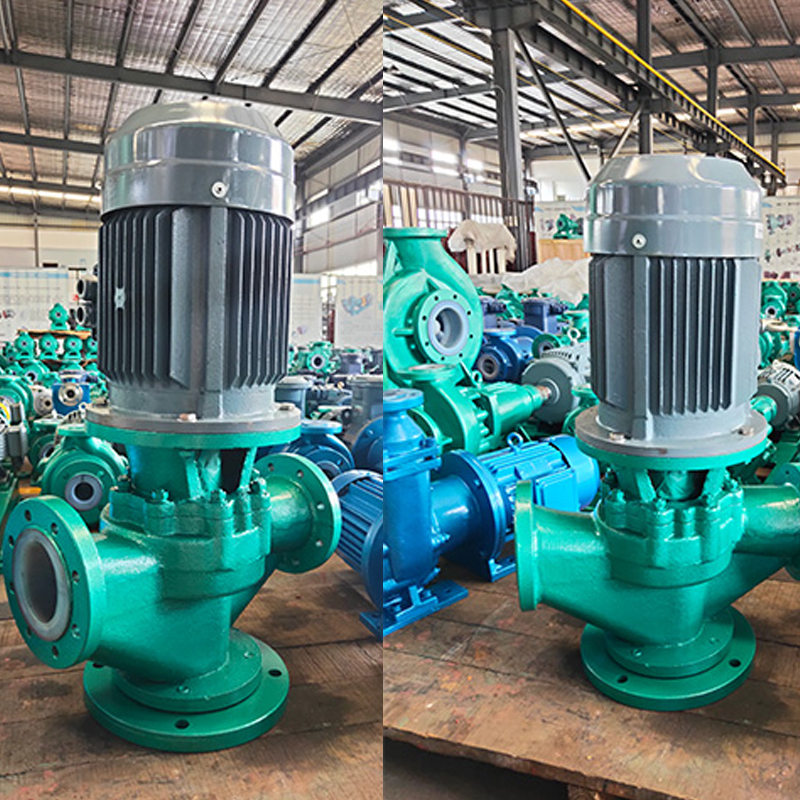

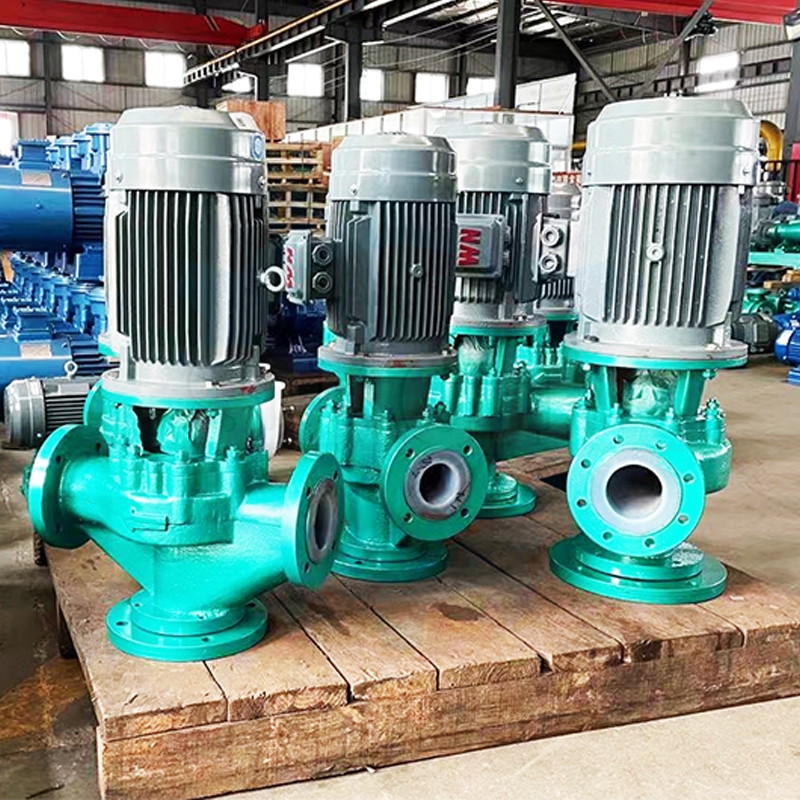

Detailed images
